Customizable Roller Coating Line Versatile Coating Solution For
Various Industries
Product Parameter
item | value |
Type | TFT |
Display Size | Custom |
Supplier Type | Factory |
Place of Origin | China |
| Guangdong |
Brand Name | Runzhong |
Resolution | 240*320 |
Size | 2.8'' |
Touch Type | TFT LCD |
Product Name | TFT LCD Dispaly |
Application | Industrial Application |
IC | ILI9341V |
Active Area | 43.20X57.6mm |
Display color | 262K |
Display Type | Transmissive type |
Pin layout | 37 pin |
propose:
The roller coating line is suitable for medium-volume, regular
workpieces; such as
automobile wheels, turntables, ovens, etc.
As a kind of automated spraying equipment, the roller spray
painting line mainly consists of six major components:
pre-treatment equipment, spray painting equipment, oven,
heat source system, electronic control system, roller conveyor
line, etc. It can place the workpiece on the tooling fixture of the
conveyor line, and send the workpiece into the spraying area for
spraying through the rotation of the roller. The roller line
generally
uses an accumulation system. Each station has a manual control
button, and each
completed workpiece can be lowered to the spraying area. Processed
at the next station. The entire line adopts PLC control, stepless
speed adjustment, and is equipped with
multiple induction probes and control buttons.
The electric roller is a new type of driving equipment in which the
motor and reducer are placed inside the roller body. It is mainly
used in fixed and mobile belt conveyors,
replacing traditional motors and separate drive equipment with
reducers outside the
driving roller.

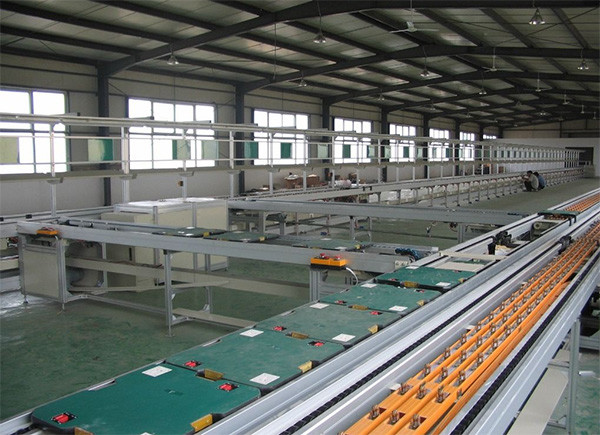

Electric roller conveyor structure
a. Line body side rail frame: It is made of bent steel plates with
a thickness of over
6mm and is treated with anti-rust treatment. The specification is
160×60mm. The
installation height of the side plates does not exceed the
thickness of the lower tooling plate and does not interfere with
the rotation of the tooling plate.
b. Line body legs: square profile, specifications larger than
80×50mm, height adjustable to ensure sufficient support strength
c. Roller line configuration requirements
① All rollers are required to be well processed and must not have
defects that may
affect their use. The rollers are made of seamless steel pipes with
a wall thickness of ≥ 6mm.
②The roller bearings all use high-quality bearings, double-sided
sealed high-quality
bearings, and all bearings use standard bearings first.
③The roller chain adopts a steel structure sprocket. The sprocket
meshes well with the chain and the roller runs smoothly. The top of
the sprocket is covered with a stainless
steel plate chain cover. The height of the sprocket cover is 3 to 4
mm lower than the working surface of the roller.
④ The lower chain of the roller is used for dragging. The
installation form on both
sides of the roller is removable, and the height difference between
any three rollers is
not more than 2mm.
⑤The chain adopts domestic high-quality brand chain. The chain
pitch is determined
according to Party A’s existing roller. The chain adopts manual
tensioning function.
⑥The whole set of wires has a solid structure and beautiful
appearance; it has
sufficient on-load strength and ensures continuous production.
⑦ The tooling plate shall be in a smooth transition during the
working process, and the noise of all equipment and its driving
devices shall not exceed 75dB during the
working process.
The power Roller is customized according to the parameters required
by Party A.
